3 Way Narrow Aisel Forklift

ASK FOR A QUOTE

Please enter your demands, our sales staff will offer you in 6 hours.

Product Description

Main Features:

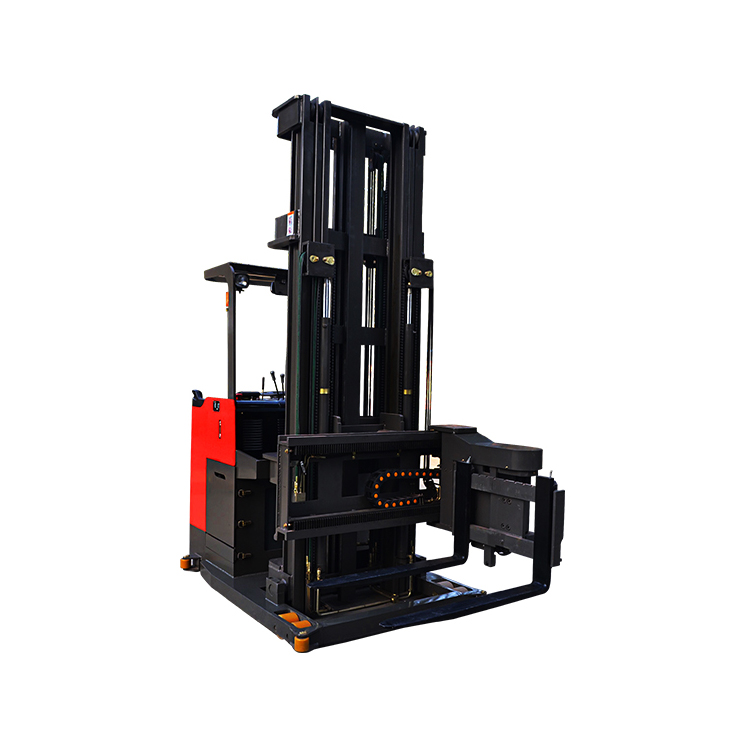

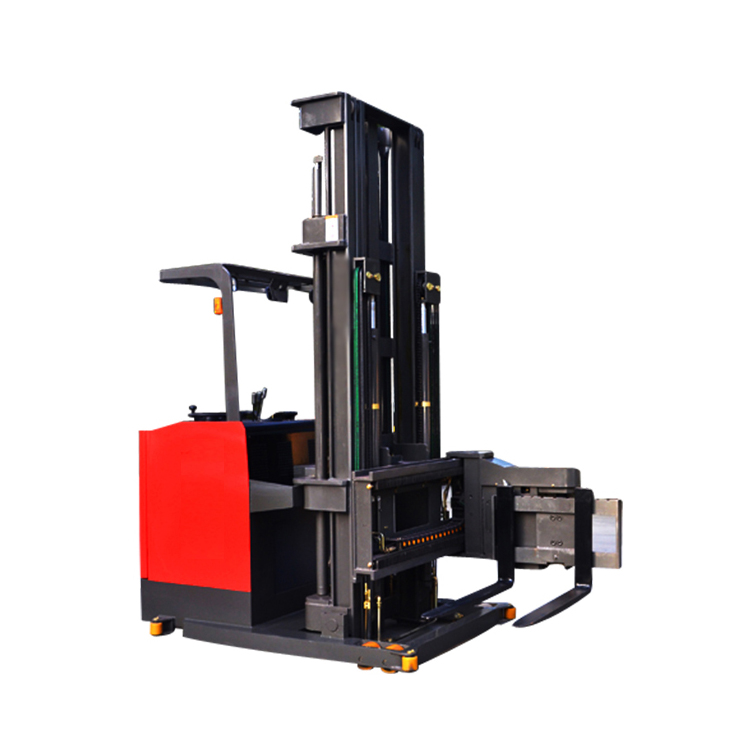

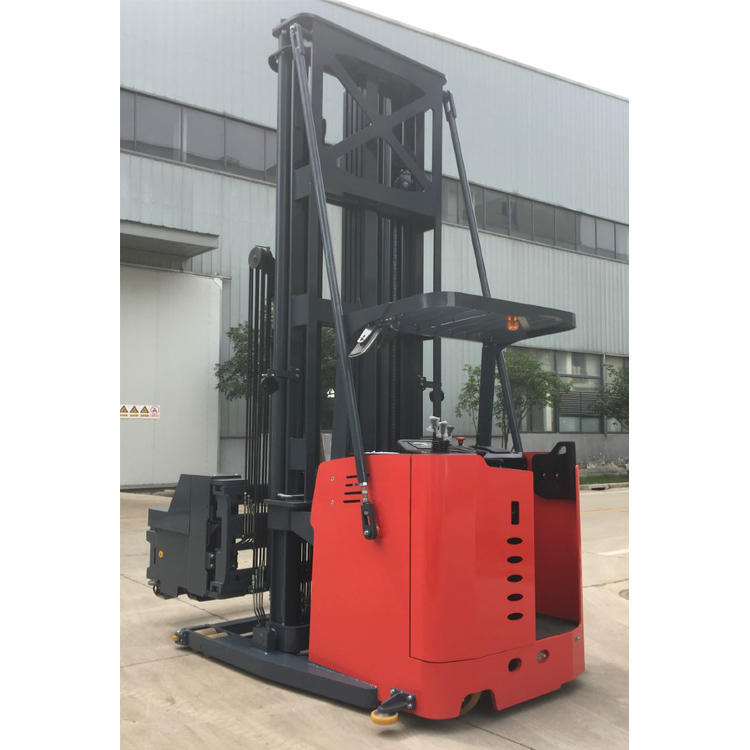

1. 3 Way VNA Forklift forks can rotate 180°and do left-right side shift without body turning, with high strength mast design. Min. net channel: 1500mm; Max.   lifting height: 9000m. The 3-way pallet stacker can improve space utlization and increase the storage capacity.

2.Advanced Curtis controller and more stable, safer whole-AC system for high efficiency, energy conservation and environmental protection.

3.Maintenance-free whole-AC driving system for quick and accurate reaction. Maintenance-free motor, with long service life and low noise   and low maintenance cost.

4.Standard electric power steering is safe and reliable, with easy and comfortable operation.

5.Large section mast structure design to ensure the rigidity of mast and improve loading performances, which is very suitable to high shelf   storage.

6.Imported hydraulic parts for stable and reliable hydraulic system.

7.Side pull type battery for convenient charging and maintenance.

Specification
Standard
1.1 Brand   CJLIFT CJLIFT
1.2 Model   CJC10
Duplex mast)
CJC15
Duplex mast)
1.3 Power type   Battery Battery
1.4 Operation type   Stand on Stand on
1.5 Rated capacity  Q(kg) 1000 1500
1.6 Load center C(mm) 500 600
1.7 Front overhang x(mm) 657 670
1.8 Wheelbase  y(mm) 1605 1700
Size
4.1 Mast closed height h1(mm) 2595 2570
4.2 Free lift height h2(mm) 0 0
4.3 Lift height h3(mm) 3000 3000
4.4 Mast extended height with load backrest h4(mm) 4085 4040
4.5 Overhead guard height h6(mm) 2260/2300 2260/2300
4.6 Stand board height h7(mm) 355 355
4.7 Overall length l1(mm) 2906 2985
4.8 Overall width b1(mm) 1450 1550
4.9 Fork size  l/e/s(mm) 1000/125/50 1200/125/50
4.10 Installation level    II A II A
4.11 Fork outside width b5(mm) 265~760 265~760
4.12 Min.ground clearance  m1(mm) 40 40
4.13 Aisle width for pallet 1000x1000mm  Ast(mm) 1500 1600
4.14 Turning radius Wa(mm) 1880 1980
Function
5.1 Driving speed (load/unload) km/h 7.5/8 7.5/8
5.2 Lifting speed (load/unload) mm/s 240/290 260/300
5.3 Lowering speed (load/unload) mm/s 310/310 360/390
5.4 Brake type   Mechanical Mechanical
Drive
6.1 Driving motor (S2-60min) kw 5.5 AC 5.5 AC
6.2 Lifting motor (S3-15%) kw 8.6 AC 12.8 AC
6.3 Battery voltage /capacity V/Ah 48/390 48/480
6.4 Battery weight kg 650 765
6.5 Steering system   EPS EPS
Other
7.1 Battery replacement type    Side pull Side pull
7.2 Lithium battery voltage/capacity V/Ah 48/300 48/300
