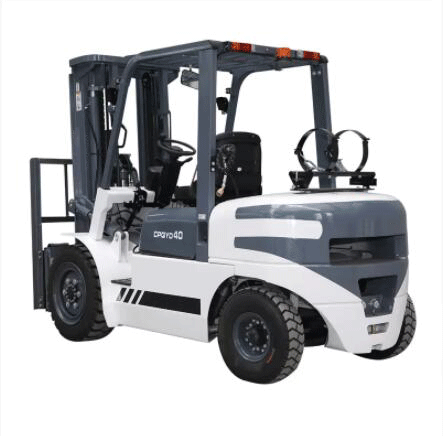

Hot sales LPG/Gasoline forklift Empilhadeira Montacargas
Loading Capacity: 1.5ton, 1.8ton, 2ton,2.5ton, 3ton,3.5ton, 4ton
Lifting Height: 3000mm - 6000mm
Main Products advantage:
1) Equipped with domestic GQ-4Y and imported Nissan engine, emission reaches Euro 3 standard, strong power, green environment protection.
2) The meter has water temperature meter, oil meter, time meter and other alarm indicator light, and the reasonable structure makes the working condition under control.
3) The air intake is installed above the pillar of the top protection frame, away from the dust generated by the wheel, the air inhaled by the engine is cleaner, and the engine life is improved.
4) IMPCO gas system is adopted to provide customers with CNG,LNG,LPG and other power choices to meet the differentiated needs of different customers.
Main Information | |||||||||||||||||
1 | Manufacturer | CJLIFT | |||||||||||||||
2 | Model | CPQD15 | CPQYD15 | CPQD20 | CPQYD20 | CPQD25 | CPQYD25 | CPQD30 | CPQYD30 | CPQYD35 | CPQYD40 | ||||||
3 | Power type | LPG/Gasoline | |||||||||||||||
4 | Rated capacity | kg | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | |||||||||
5 | Load center | mm | 500 | ||||||||||||||
6 | Operator type | Drive in seat | |||||||||||||||
Size | |||||||||||||||||
7 | Max. lift height of mast with Load-back | mm | 4030 | 4030 | 4030 | 4262 | 4262 | 4275 | |||||||||
8 | Max.lift height of fork(standard) | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |||||||||
9 | Height of mast (standard) | mm | 1985 | 2000 | 2000 | 2065 | 2180 | 2150 | |||||||||
10 | Free lift height(standard) | mm | 125 | 170 | 170 | 160 | 170 | 150 | |||||||||
11 | Height of Load-backrest | mm | 1010 | 1010 | 1010 | 1240 | 1235 | 1235 | |||||||||
12 | Distance from seat to overhead guard | mm | 1015 | 1000 | |||||||||||||
13 | Overhead guard height | mm | 2070 | 2070 | 2070 | 2090 | 2090 | 2105 | |||||||||
14 | Length with fork/with out fork | mm | 2230 | 2502 | 2576 | 2682 | 2693 | 2895 | |||||||||
15 | Front overhang | mm | 420 | 477 | 477 | 479 | 498 | 500 | |||||||||
16 | Rear overhang | mm | 424 | 420 | 494 | 495 | 495 | 495 | |||||||||
17 | Wheel base | mm | 1400 | 1600 | 1600 | 1700 | 1700 | 1900 | |||||||||
18 | The height of traction pin | mm | 230 | 290 | 290 | 310 | 310 | 330 | |||||||||
19 | Min. ground clearance | mm | 100 | 110 | 110 | 135 | 135 | 130 | |||||||||
20 | Overall width | mm | 1070 | 1170 | 1170 | 1225 | 1225 | 1410 | |||||||||
21 | Fork distance (outside) (Max/min) | mm | 910/125 | 1024/200 | 1024/200 | 1060/250 | 1060/250 | 1290/260 | |||||||||
22 | Tread(front /rear) | mm | 890/920 | 970/970 | 970/970 | 1000/970 | 1000/970 | 1160/1065 | |||||||||
23 | Min. Turning radius(outside) | mm | 2060 | 2170 | 2240 | 2400 | 2420 | 2700 | |||||||||
24 | Min. Turning radius(inside) | mm | 130 | 160 | 160 | 200 | 200 | 230 | |||||||||
25 | Min. Intersecting aisle | mm | 1865 | 2200 | 2280 | 2380 | 2400 | 2685 | |||||||||
26 | Mast tilt angle | deg | 6° / 12° | ||||||||||||||
27 | Fork size | mm | 920X100X35 | 920X100X45 | 1070X100X45 | 1070X125X45 | 1070X125X50 | 1070X130X50 | |||||||||
Performance | |||||||||||||||||
28 | Speeds | Max.Drive speeds(load/unload) | km/h | 13.5/14.5 | 17/19 | 17/19 | 18/19 | 19/19 | 18/19 | ||||||||
29 | Lifting(load/unload) | mm/s | 460/500 | 530/550 | 530/550 | 440/480 | 330/370 | 350/380 | |||||||||
30 | Lowering(load/unload) | mm/s | 450/550 | 450/550 | 450/550 | 450/550 | 350/400 | 350/400 | |||||||||
31 | Max.Drawbar pull(load/unload) | KN | 20/15.2 | 21/15.2 | 20/15 | 21/15 | 20/15.2 | 21/15.2 | 20/16 | 20/16 | 20/16.3 | 20/18 | |||||
32 | Max.Gradeability(load/unload) | % | 18/20 | 23/20 | 21/20 | 27/20 | 18/20 | 23/20 | 20/20 | 20/20 | 16.5/20 | 15/18 | |||||
Weight | |||||||||||||||||
33 | Total weight | kg | 2680 | 3320 | 3680 | 4270 | 4700 | 5310 | |||||||||
34 | Weight Distribution full load (front/ rear) | kg | 3640/520 | 4788/532 | 5562/618 | 6543/727 | 7380/820 | 8380/930 | |||||||||
35 | Weight Distribution zero load(front / rear) | kg | 1170/1490 | 1328/1992 | 1420/2208 | 1708/2562 | 1880/2820 | 2120/3190 | |||||||||
Wheels and Tyres | |||||||||||||||||
36 | Number of wheels X= drive wheels(front/back) | 2X / 2 | |||||||||||||||
37 | Tyre type (front/back) | Pneumatic tire | |||||||||||||||
38 | Tire Size | Front | 6.50-10-10PR | 7.00-12-12PR | 7.00-12-12PR | 28X9-15-12PR | 28X9-15-12PR | 250-15-16PR | |||||||||
39 | Rear | 5.00-8-10PR | 6.00-9-10PR | 6.00-9-10PR | 6.00-10-10PR | 6.00-10-10PR | 6.50-10-10PR | ||||||||||
40 | Driving Brake | Hydraumatic pedal | |||||||||||||||
41 | Parking Brake | Mechanical manual | |||||||||||||||
Control device for driving and transmitting | |||||||||||||||||
42 | Battery(Voltage/capacity) | V/AH | 12/80 | 12/80 | |||||||||||||
43 | Engine | Japanese Nissan K21/K25 or Chinese Engine GQ-4Y | |||||||||||||||
48 | Fuel tank capacity | L | 60 | 60 | |||||||||||||
49 | Number of speeds for transmission(Front/back type) | 2-2Hand shift transmission / 1-1 Power shift transmission |
