2Ton 2.5Ton 3Ton Hand Pallet Trolley Hand Pallet Jack


Please enter your demands, our sales staff will offer you in 6 hours.

Product Description

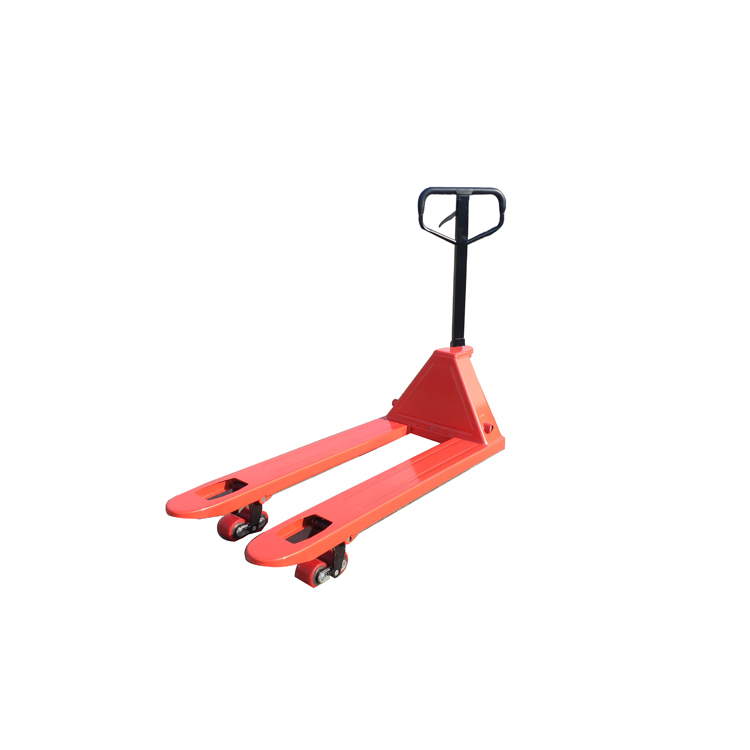

2Ton 2.5Ton 3Ton Hand Pallet Trolley Hand Pallet Jack


Product Advantages:

1.Quick down key function, high efficiency pump to reach the maximum height with less time, which makes more efficient and labor saving.

2.Key parts galvanized ensures long services life, stability as low noise.

3.unique design strengthened fork frame and customized plastic powder is used on the fork surface, with high surface abrasion resistance,which makes it more durable than ever.

4.Reinforced 4 ribs design under the supporting frame provide higher strength, ensure a premium, robust and durable pallet truck,the bearing capacity is strengthened by 25%.

5.The "C"-shaped groove structure at the top cover, the design of the fork legs and the backrest with the compression ribs are more reasonable and the strength is more reliable.

6.Compact appearance, complete forged rocker arm, ensure the whole truck evenly pressed.

7.Integrated pump without welding , no any leaking problems.

8.Top quality seals, which prolong the working time of hydraulic unit. No routine maintenance at all is needed on the hydraulic unit and bearings.

9.The oil pump piston rod adopts high frequency heat treatment chrome plating process, with high strength, wear resistance and corrosion resistance characteristics.

10. Fill the oil pump with low-condensing hydraulic oil, and work as usual at minus 20℃ as optional choice

11. Various optional of fork width and length suit for different pallet sizes and working requirements.

12.Optional coating material like PU, Nylon and Rubber etc. For rollers and wheels meet different needs of customer and working ground and conditions.


Data Sheet

Product Name   Hydraulic Hand Pallet Truck
Manufacturer   CJLIFT
Model   DB20 BF25 BF30
Rated Capacity Q(kg) 2000 2500 3000
Service Weight kg 70-80 70-80 70-80
Steering Wheel mm Φ180/Φ200 Φ180/Φ200 Φ180/Φ200
Fork Wheel mm Φ80 Φ80 Φ80
Max. Lifting Height h1(mm) 195/205 195/205 195/205
Total Height h2(mm) 1160 1215 1215
Lowered Fork Height h3(mm) 75/85 75/85 75/85
Overall Length L1(mm 1515/1585 1530/1600 1530/1600
Distance between Fork Arms b1(mm) 550/685 550/685 550/685

Ground Clearance,

Centre of Wheelbase

m(mm) 32 32 32
Wheel Type   PU/Nylon/Rubber  PU/Nylon/Rubber  PU/Nylon/Rubber
