5Ton Hand Pallet Truck

ASK FOR A QUOTE

Please enter your demands, our sales staff will offer you in 6 hours.

Product Description

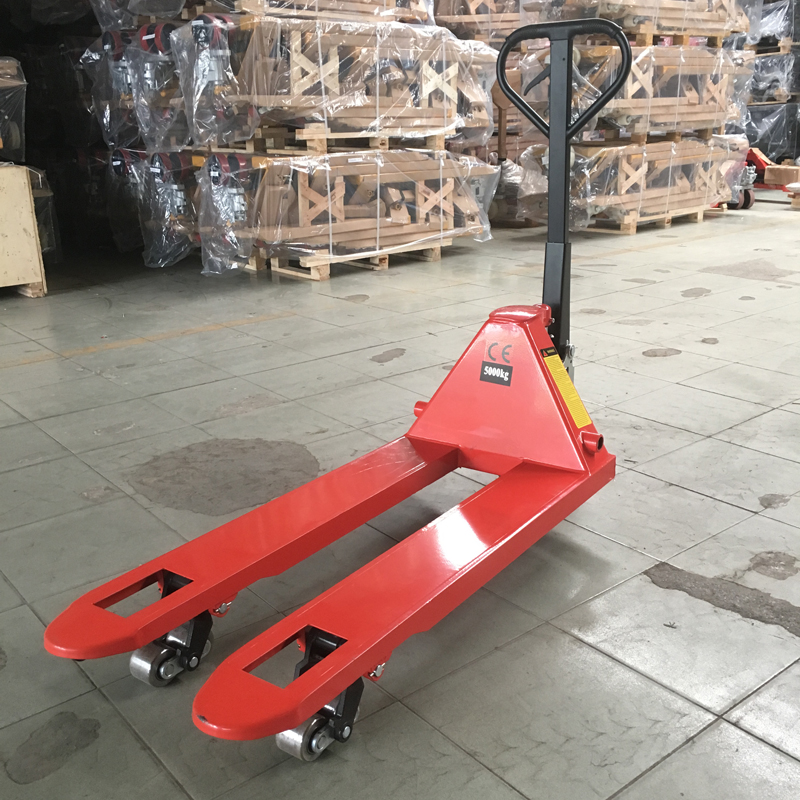

Super Loaded Pallet Truck



It's the most heavy loaded truck of our products. The capacity is 4000-5000kgs. We use the high-strength materials to ensure the quality.



Production Description:

  • High quality integrated casting oil cylinder, the reinforced piston rod diameter have 40mm.
  • The fork with reinforcing rib, thickness is 16mm with Q345 steel materials, have a big bearing power and distortion is not easy.
  • Push rod been produced by 30840 solid steel, bend resistance ability have been raised above 1.4 multiple.
  • Wheels have iron wheels and high strength Nylon wheels, and behind of the fork with a hook, can use more convenient.
  • Fork fit for double-deck pallet.



Model   BF50 BF50
Capacity KG 5000
Max lifting height MM 195
Lowered fork height MM 85
Fork size MM 550x1150 685x1220
Front wheel MM 80x70
Steer wheel MM 180x50
Wheel   Nylon / Iron / PU
Qty(20HQ) PCS 120 96
Net weight KG 110 120
