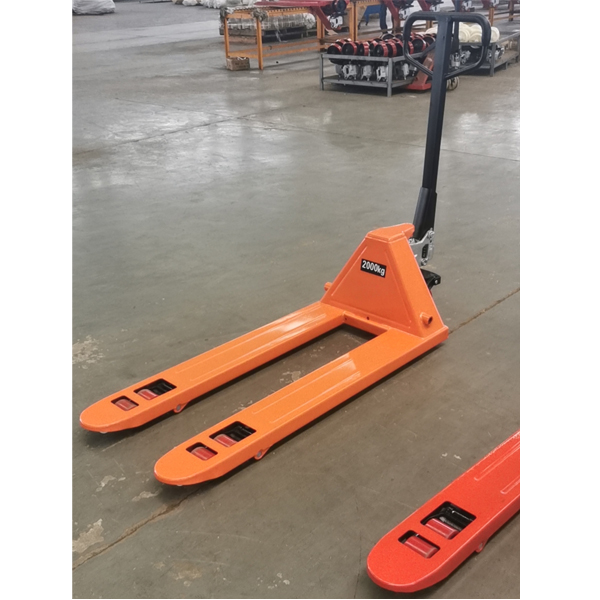

2Ton 2.5Ton 3Ton Low Profile Hydraulic Hand Pallet Truck
| Product Name | Hydraulic Hand Pallet Truck | |||
| Manufacturer | CJLIFT | |||
| Model | DB20 | BF25 | BF30 | |
| Rated Capacity | Q(kg) | 2000 | 2500 | 3000 |
| Service Weight | kg | 70-80 | 70-80 | 70-80 |
| Steering Wheel | mm | Φ180/Φ200 | Φ180/Φ200 | Φ180/Φ200 |
| Fork Wheel | mm | Φ80 | Φ80 | Φ80 |
| Max. Lifting Height | h1(mm) | 195 | 195 | 195 |
| Total Height | h2(mm) | 1160 | 1160 | 1215 |
| Lowered Fork Height | h3(mm) | 65 | 65 | 65 |
| Overall Length | L1(mm） | 1515/1585 | 1515/1585 | 1530/1600 |
| Fork Length | mm | 1500/1800/2000 | 1500/1800/2000 | 1500/1800/2000 |
| Distance between Fork Arms | b1(mm) | 550/685 | 550/685 | 550/685 |
|
Ground Clearance, Centre of Wheelbase |
m(mm) | 32 | 32 | 32 |
| Wheel Type | PU/Nylon | PU/Nylon | PU/Nylon | |
