China Hydraulic Hand Pallet Truck Factory Hand Pallet Jack OEM Plant

ASK FOR A QUOTE

Please enter your demands, our sales staff will offer you in 6 hours.

Product Description

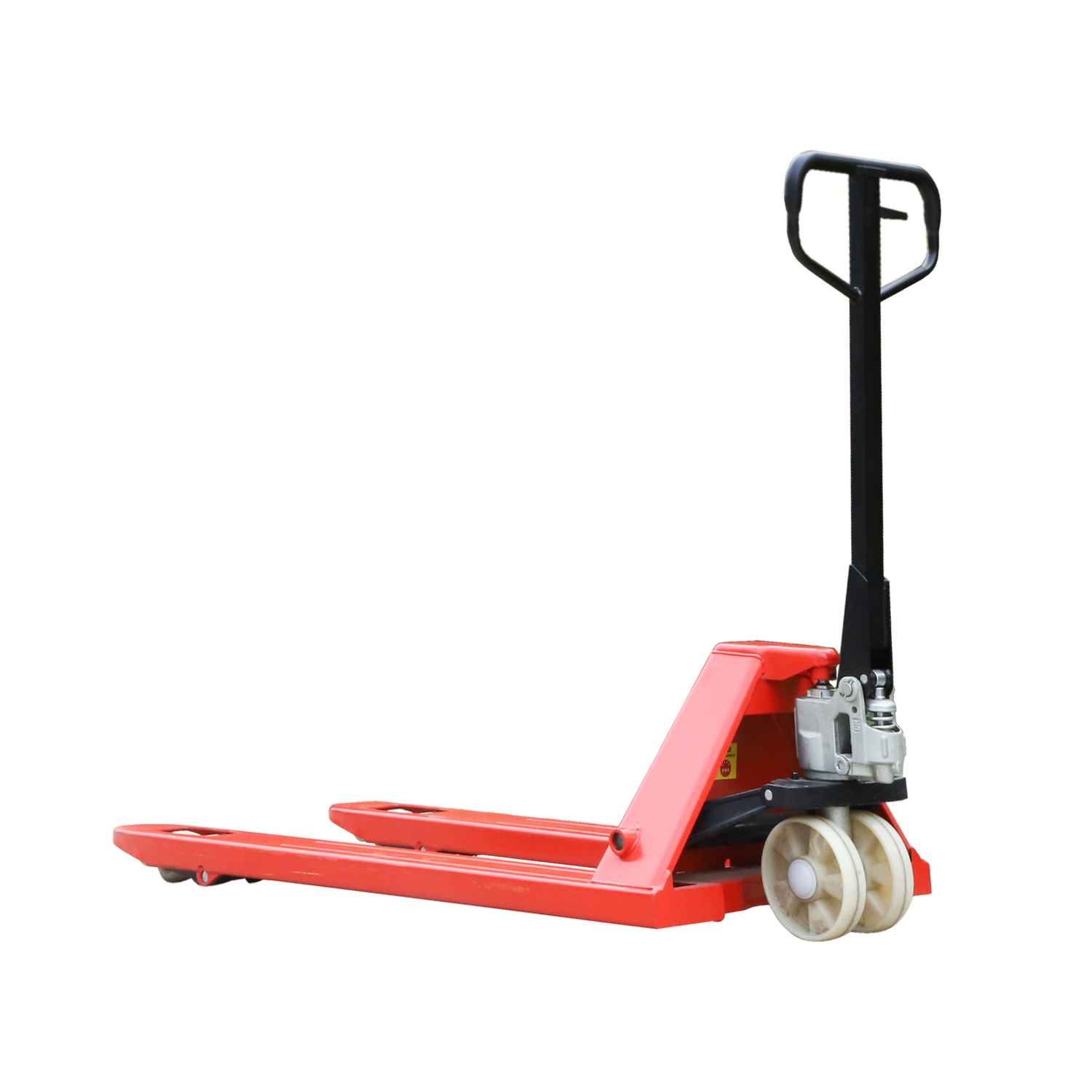

China Heli Hand Pallet Truck OEM Plant 2ton 2.5ton 3ton Hand Pallet Jack



Product Advantage:

● Integrated pump without welding, no any leaking problems.

 The "C"-shaped groove structure at the top cover, the design of the fork legs and the backrest with the compression ribs are more reasonable and the strength is more reliable.

● The rocker arms are all forged parts with good strength and beautiful appearance.

 With welded joints and reinforced fork tips for most durability in the toughest applications.

 Reinforced 4 ribs design under the supporting frame provide higher strength, ensure a premium, robust and durable pallet truck.

 Compact appearance, complete rocker arm, ensure the whole truck evenly pressed.

additional

 Special request for width and length can be customized according to customer’s requirement.


Product Name   Hand Pallet Truck
Manufacturer   CJLIFT
Model   DB20 BF25 BF30
Rated Capacity Q(kg) 2000 2500 3000
Service Weight kg 70-80 70-80 70-80
Steering Wheel mm Φ180/Φ200 Φ180/Φ200 Φ180/Φ200
Fork Wheel mm Φ80 Φ80 Φ80
Max. Lifting Height h1(mm) 195 195 195
Total Height h2(mm) 1160 1160 1215
Lowered Fork Height h3(mm) 65/75/85 65/75/85 65/75/85
Overall Length L1(mm 1515/1585 1515/1585 1530/1600
Fork Dimensions s/e/l 50/160/1150(1220) 50/160/1150(1220) 50/160/1150(1220)
Distance between Fork Arms b1(mm) 550/685 550/685 550/685

Ground Clearance,

Centre of Wheelbase

m(mm) 32 32 32

Wheel Type

  PU/Nylon PU/Nylon PU/Nylon
Fork Length can be customized, with longer fork length of 1500mm 1600mm or other requested length
