Please enter your demands, our sales staff will offer you in 6 hours.

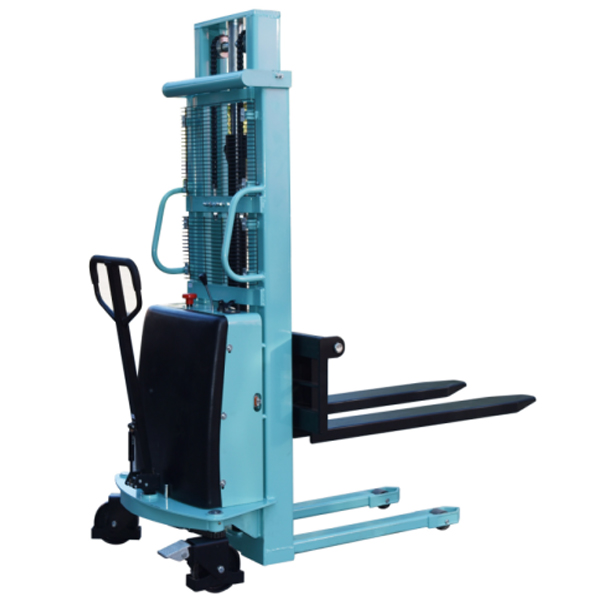

Main Features:
1. The streamline shape of the waterfall makes the body shorter and the passage smaller.
2. Four-point design makes better stacking stability. The rear wheel protection cover effectively improve work safety.
3. The Walkie Stacker use foot brake which is safe and reliable.
4. The electrical cover can be easily opened for battery maintenance.
Specification:
| Model | SPN-F1016 | SPN-F1020 | SPN-F1025 | SPN-F1030 | SPN-F1035 | SPN-F1516 | SPN-F1520 | SPN-F1525 | SPN-F1530 | SPN-F1535 | SPN-F2016 | SPN-F2020 | |
| Capacity | KG | 1000 | 1000 | 1000 | 1000 | 1000 | 1500 | 1500 | 1500 | 1500 | 1500 | 2000 | 2000 |
| Max lifting height | MM | 1600 | 2000 | 2500 | 3000 | 3500 | 1600 | 2000 | 2500 | 3000 | 3500 | 1600 | 2000 |
| Lowered fork height | MM | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| Fork size | MM | 550x1150 Or (330-850)x1150 550*1150MM |
|||||||||||
| Leg width | MM | 490 | 490 | 490 | 490 | 490 | 490 | 490 | 490 | 490 | 490 | 490 | 490 |
| Motor | v/kw | 12/1.5 | |||||||||||
| Battery | v/Ah | 12/120 | |||||||||||
| Charger | v/A | 12/15 | |||||||||||
| Front wheel | MM | 74x58 74*70MM |
|||||||||||
| Steer wheel | MM | 180x50 180*50MM |
|||||||||||
| Overall length | MM | 1750 | |||||||||||
| Overall width | MM | 800/870 | |||||||||||
| Overall height | MM | 2030 | 1580 | 1800 | 2080 | 2280 | 2030 | 1580 | 1800 | 2080 | 2280 | 2030 | 1580 |
| Qty(20HQ) | PCS | 24 | |||||||||||
| Net weight | KG | 350 | 445 | 470 | 490 | 520 | 385 | 445 | 470 | 490 | 520 | 410 | 490 |
